Tigris Flex
The Wavin Tigris Flex system is the first flexible pipe for conducting hot and cold drinking water, certified by AENOR in compliance with the ISO 22391 standard.
Polyethylene is resistant to high temperatures, it comes in diameters of 16, 20, 25, and 32 mm, in red and blue colors. The PRESS type connections (Radial pressure connection) K5 and M5, avoid depending on sources of heat or electrical energy for the union.
By using these files, or the designs made by the files, Wavin shall not be liable for any direct or indirect losses, expenses, costs, or damages of any nature arising out of or resulting from the use of the files.
Download version: 2019

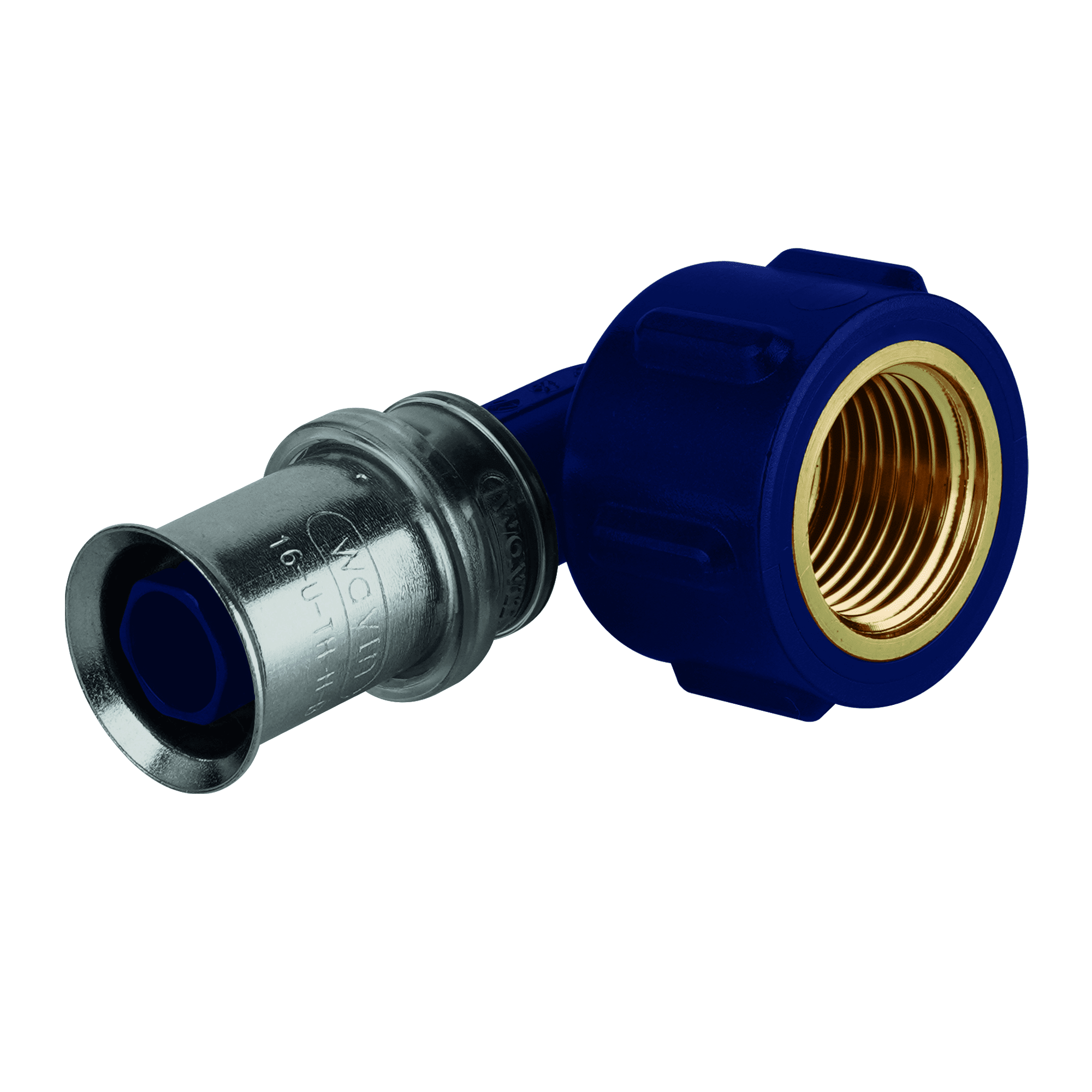

Elbow Threaded Female

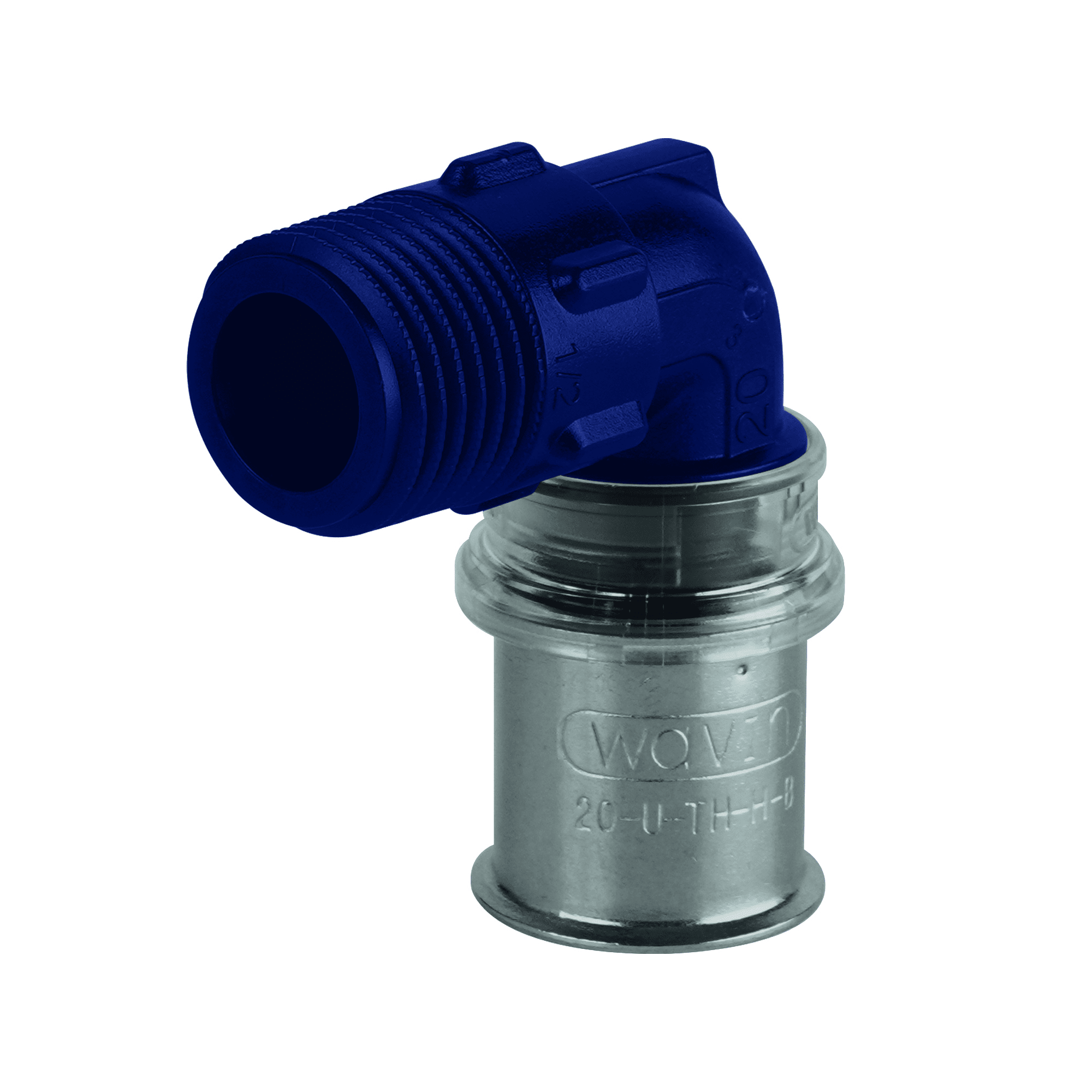

Elbow Threaded Male

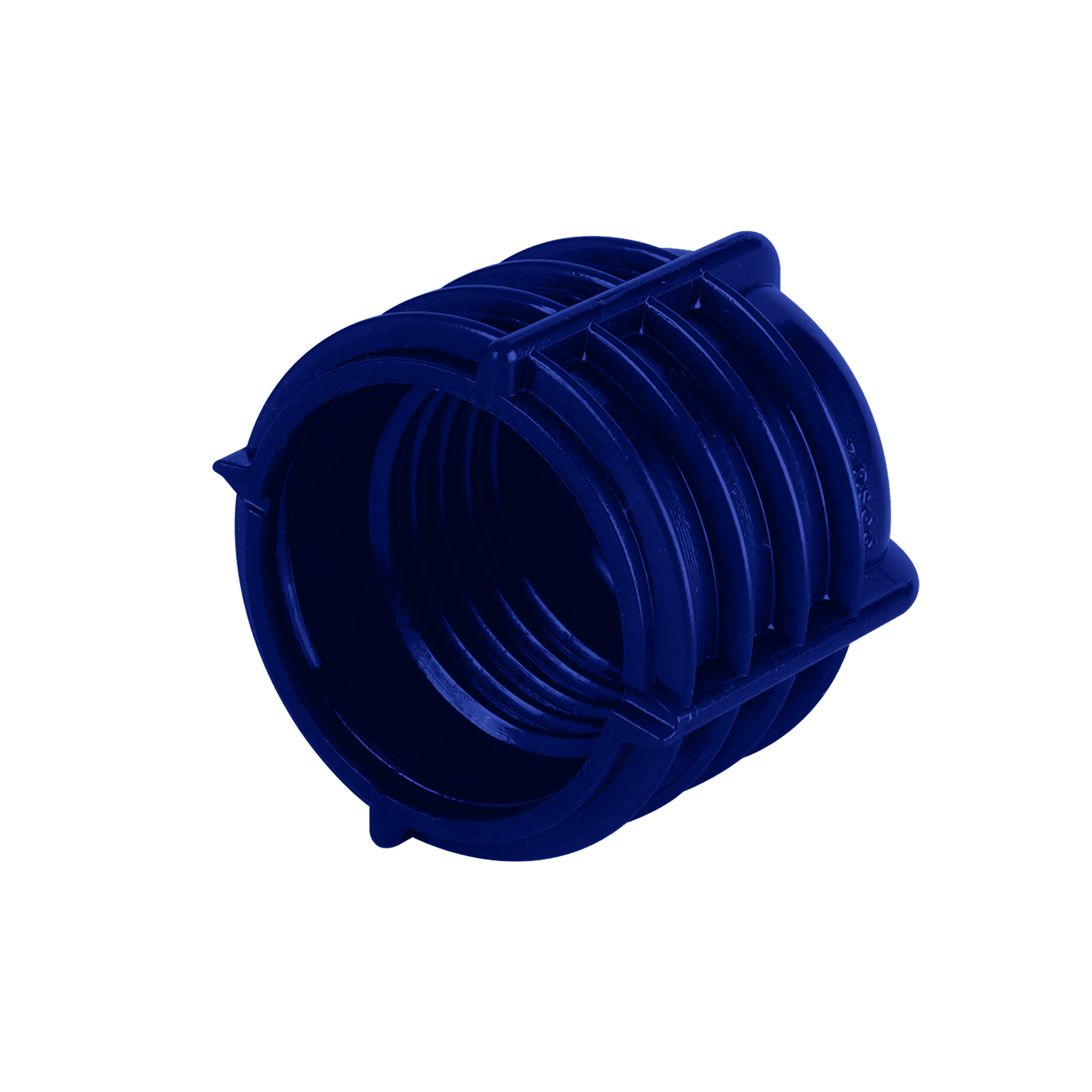

End cap Manifold

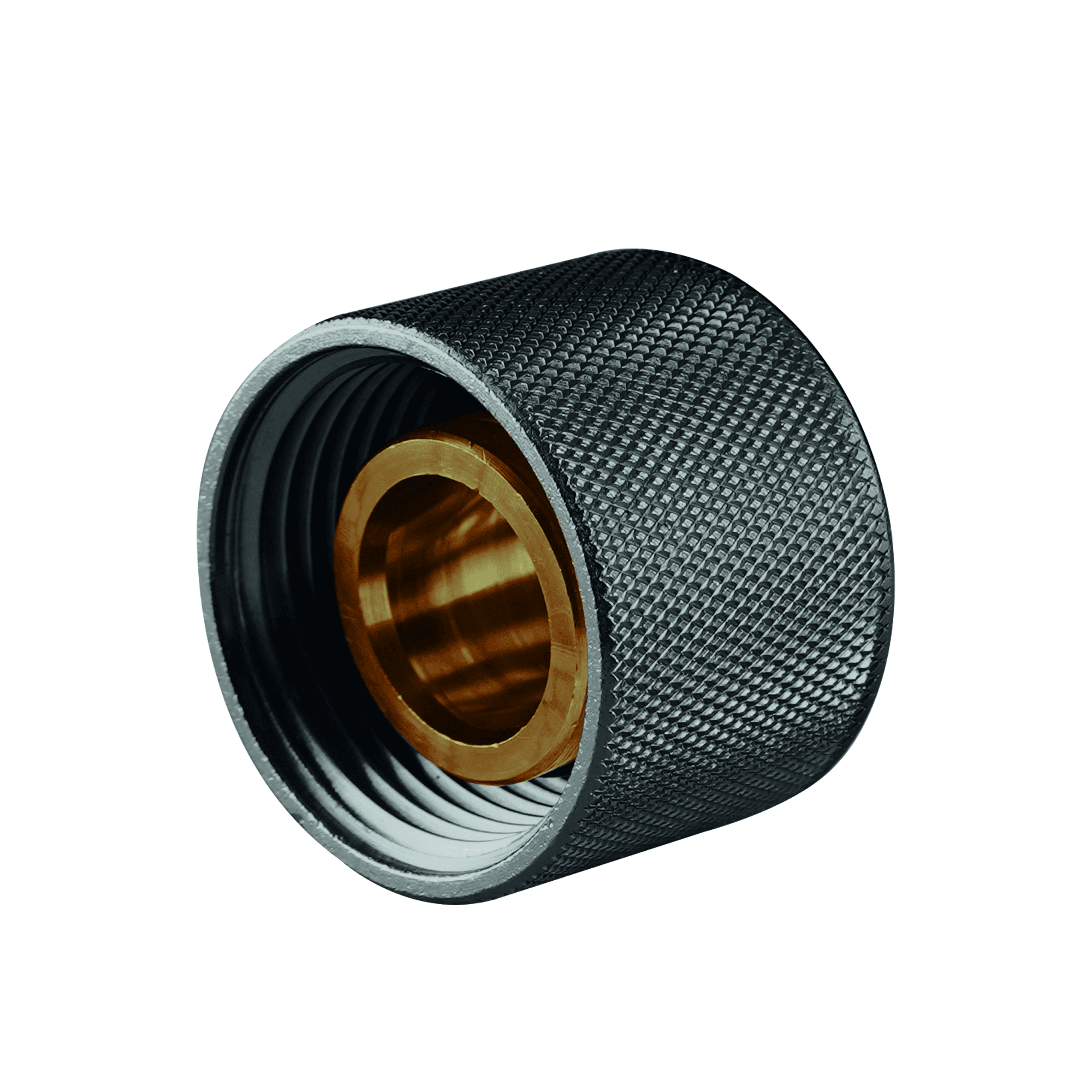

End Cap

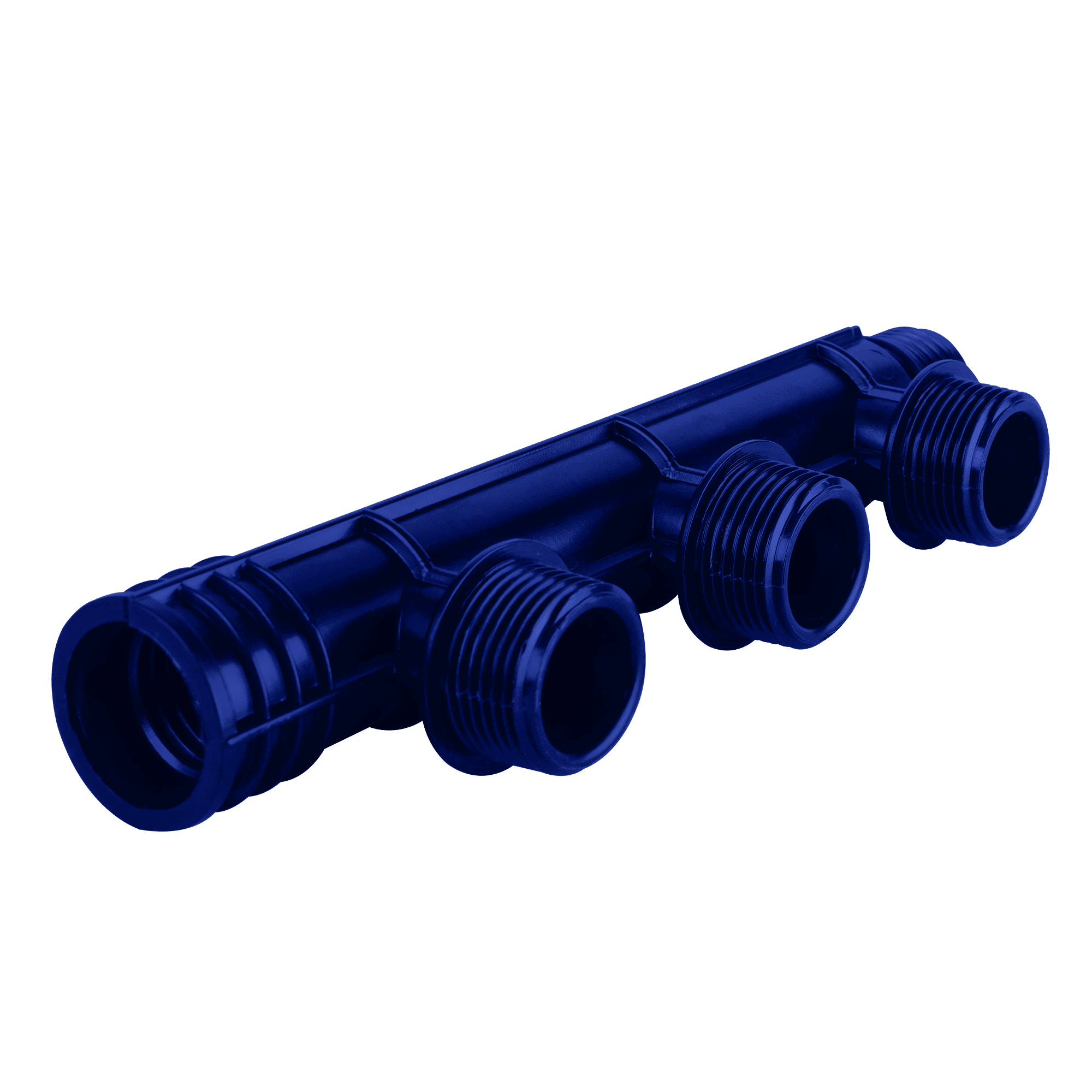

Manifold
Pipe.

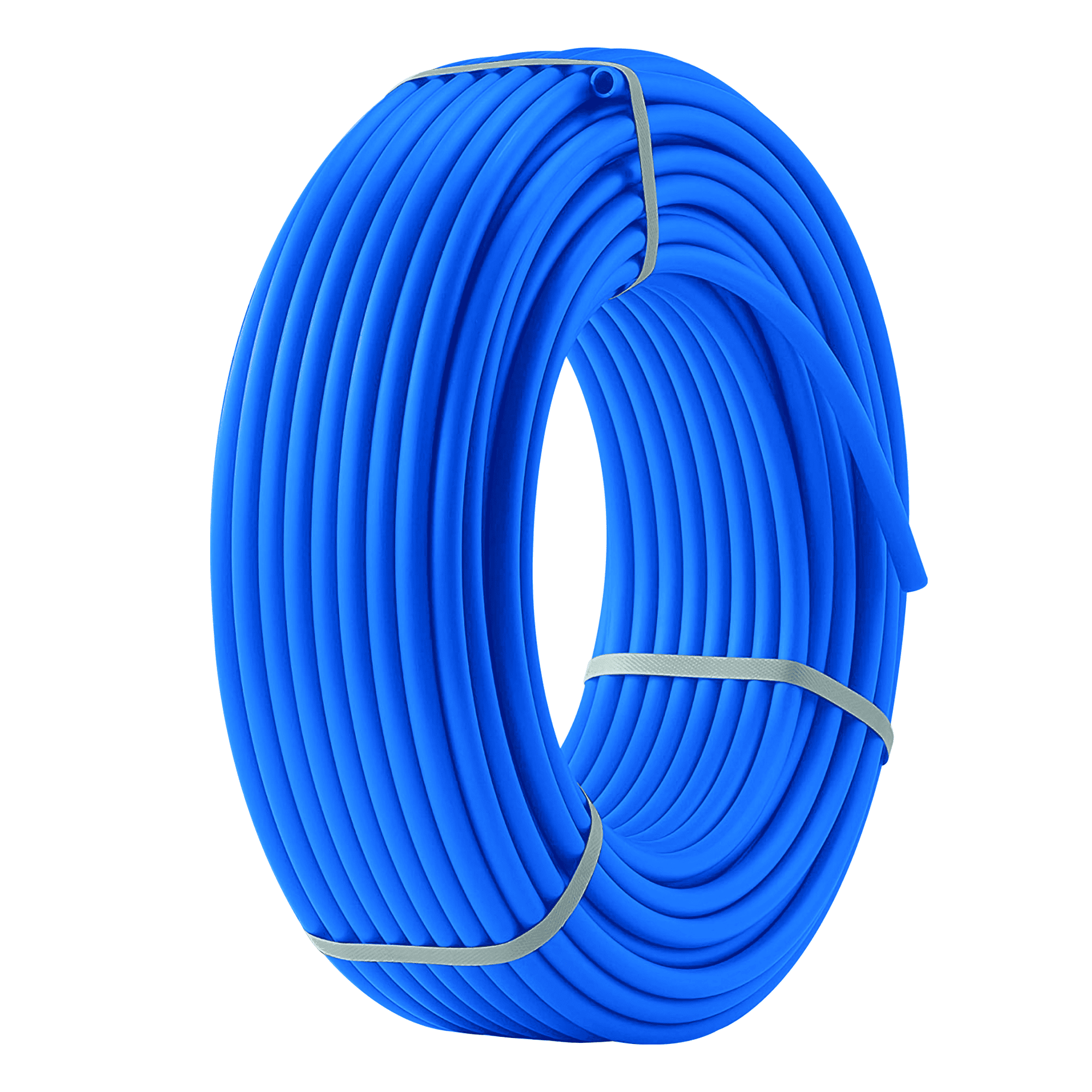

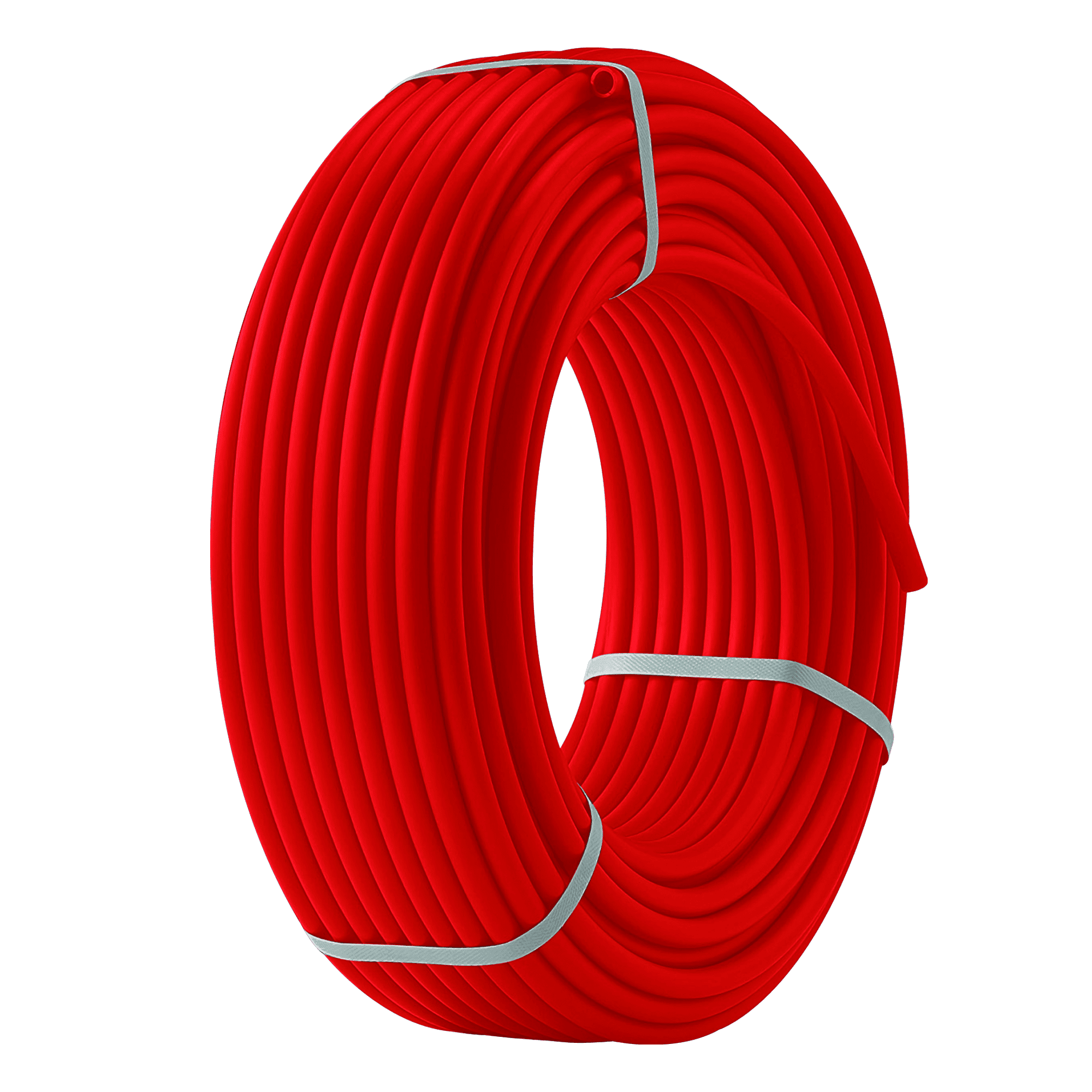

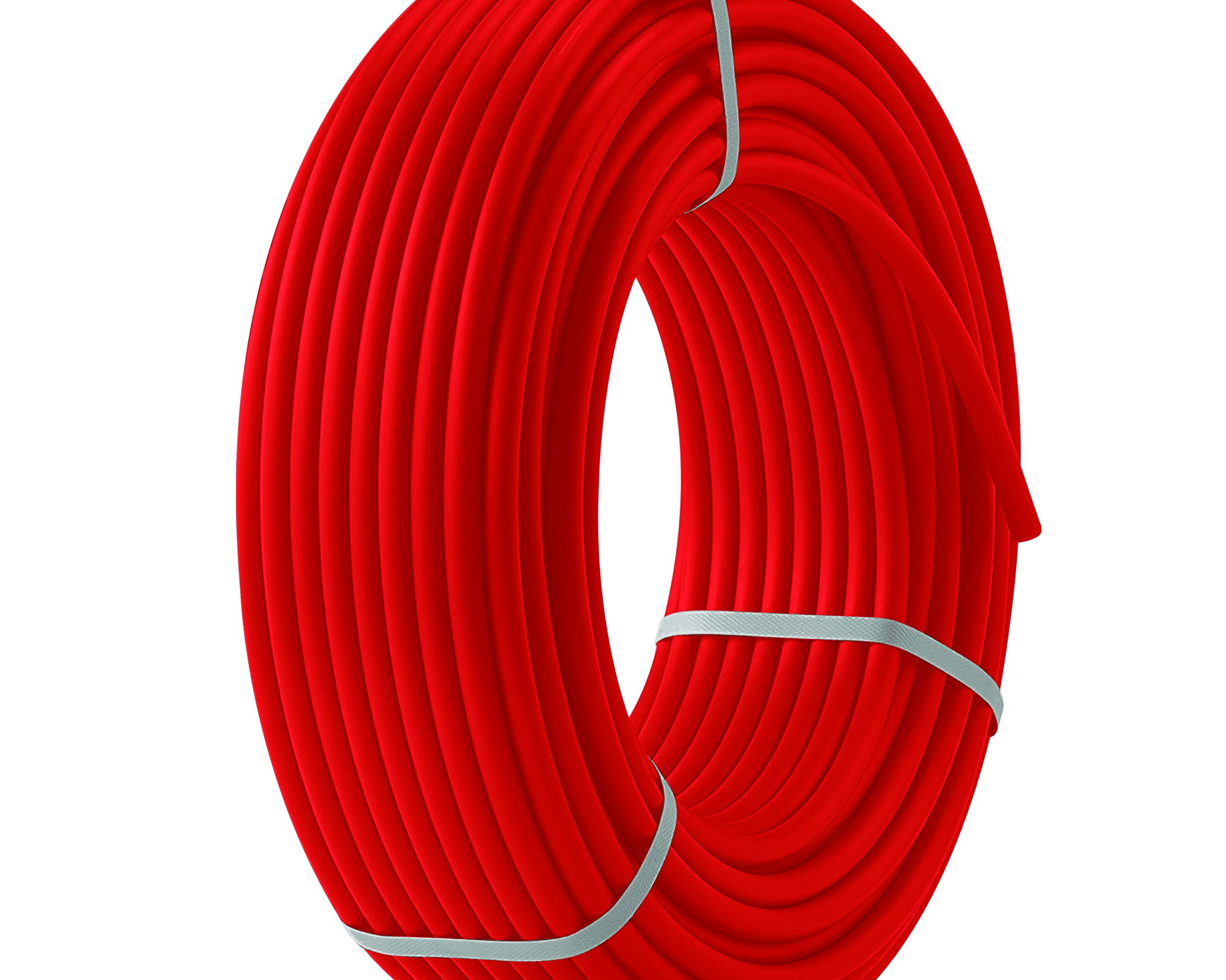

Pipe

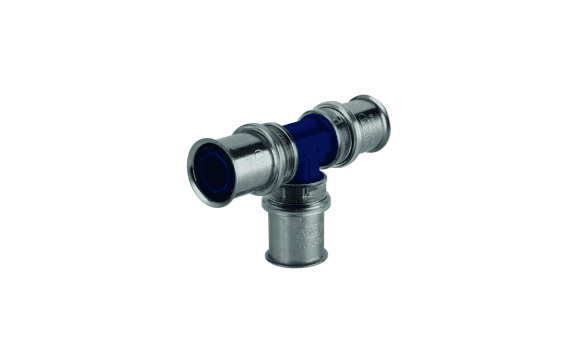

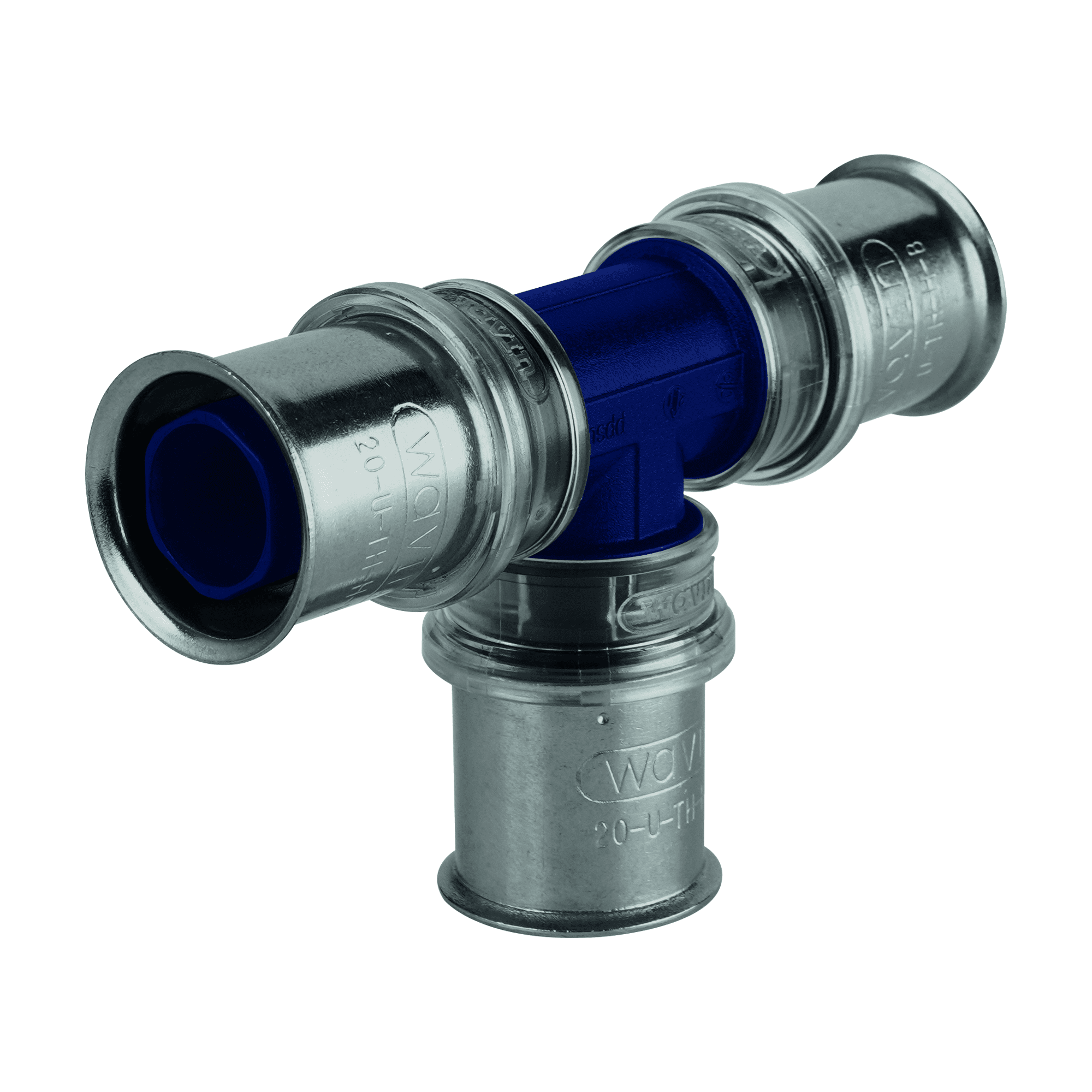

Tee

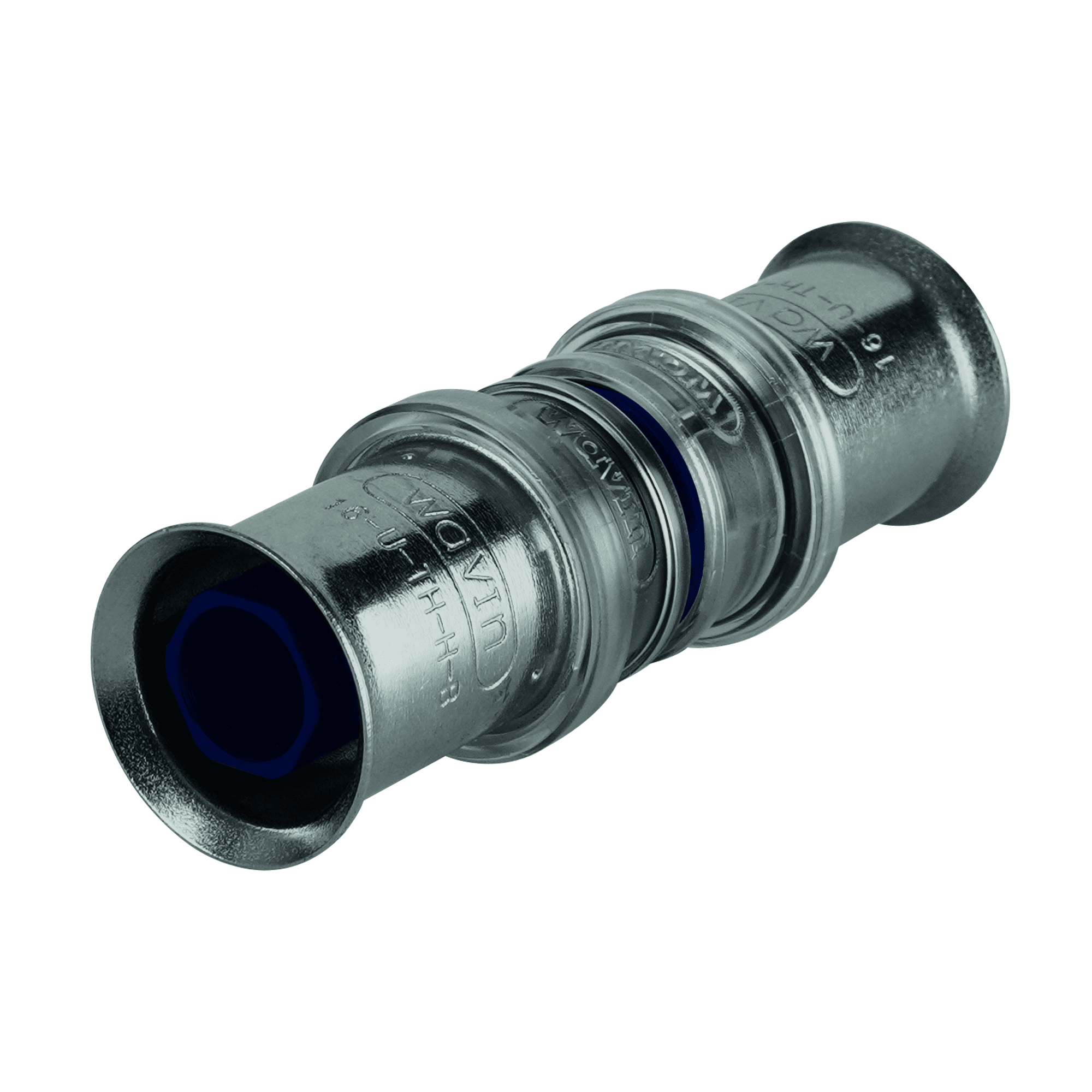

Union
Manifold Male Connector

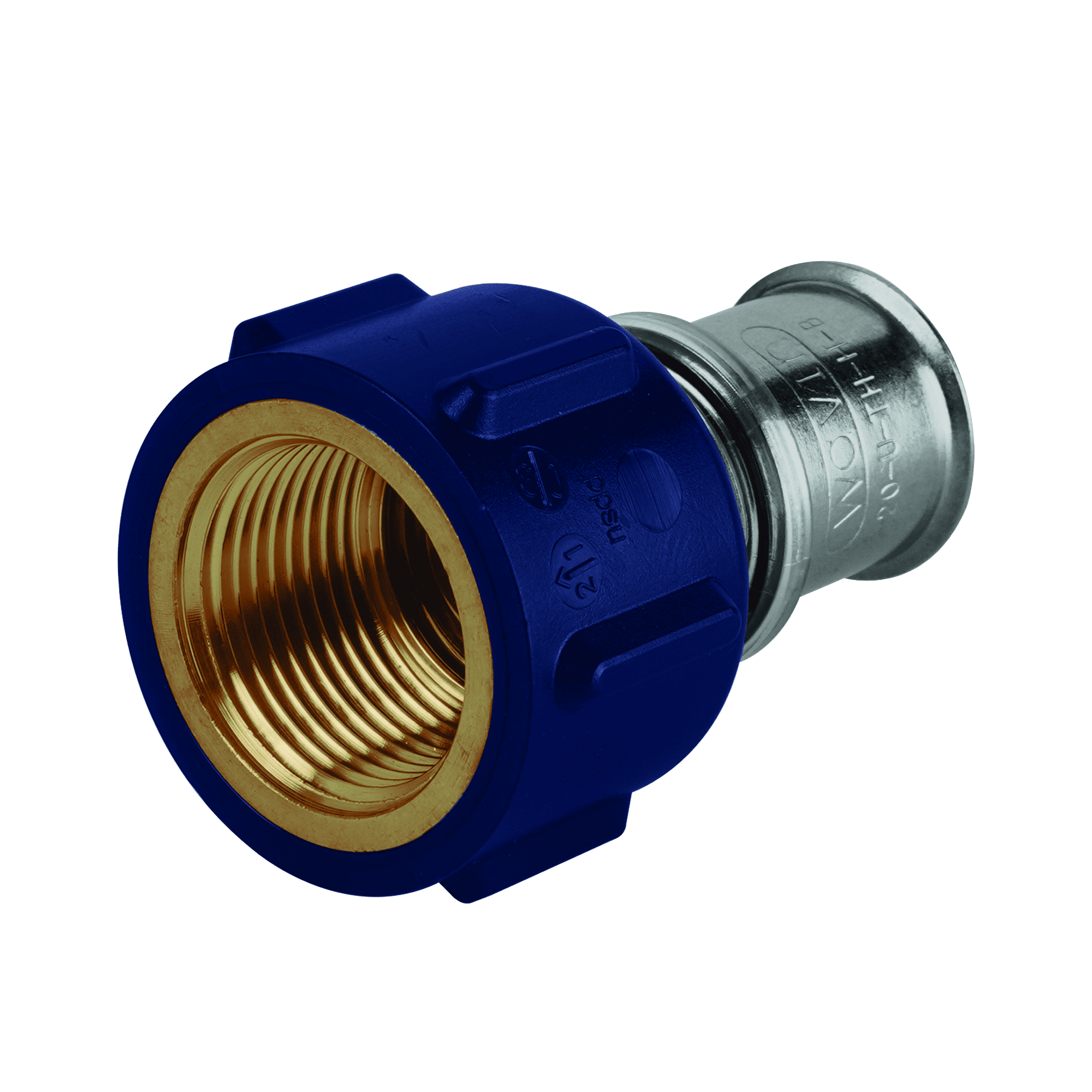

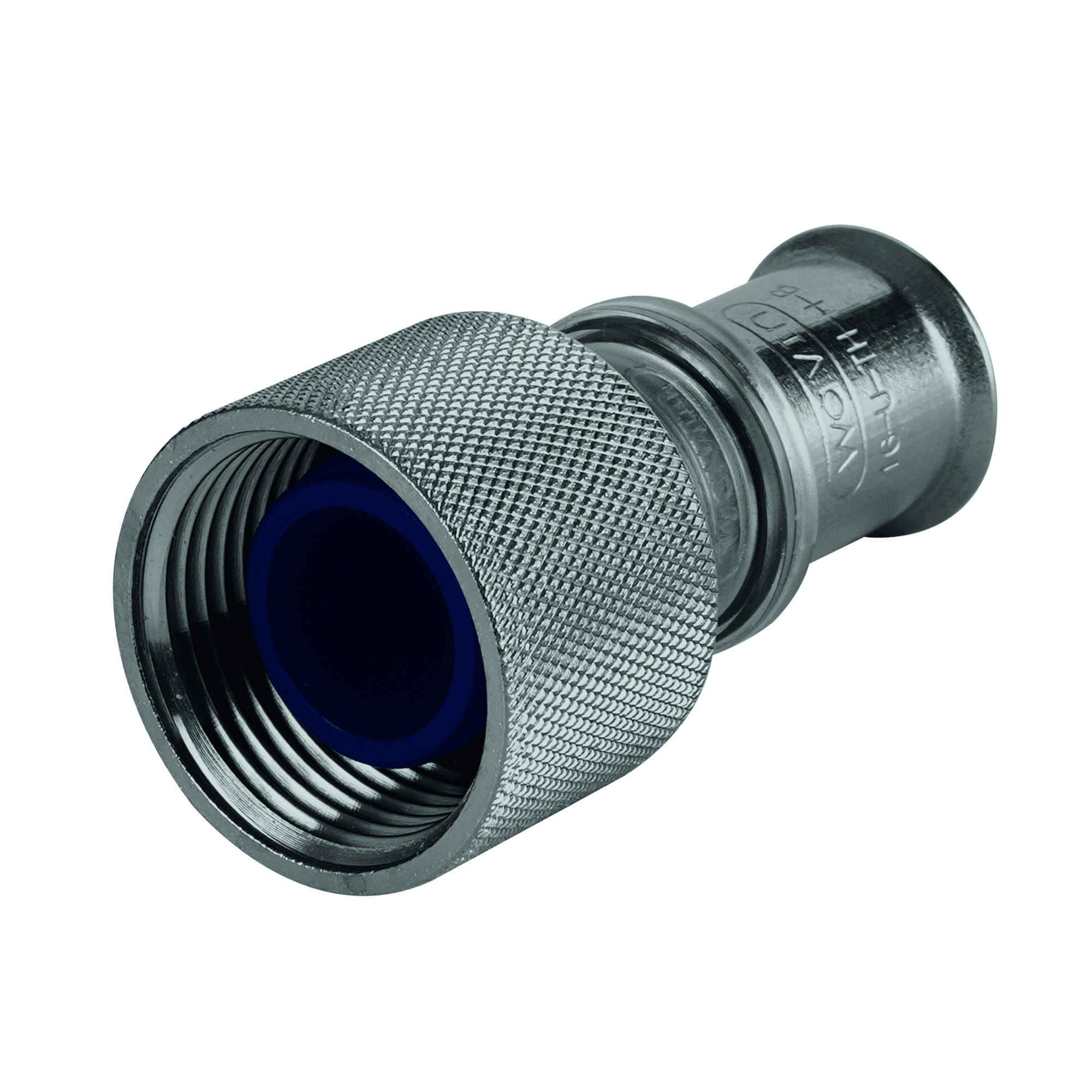

Adaptor Threaded Female

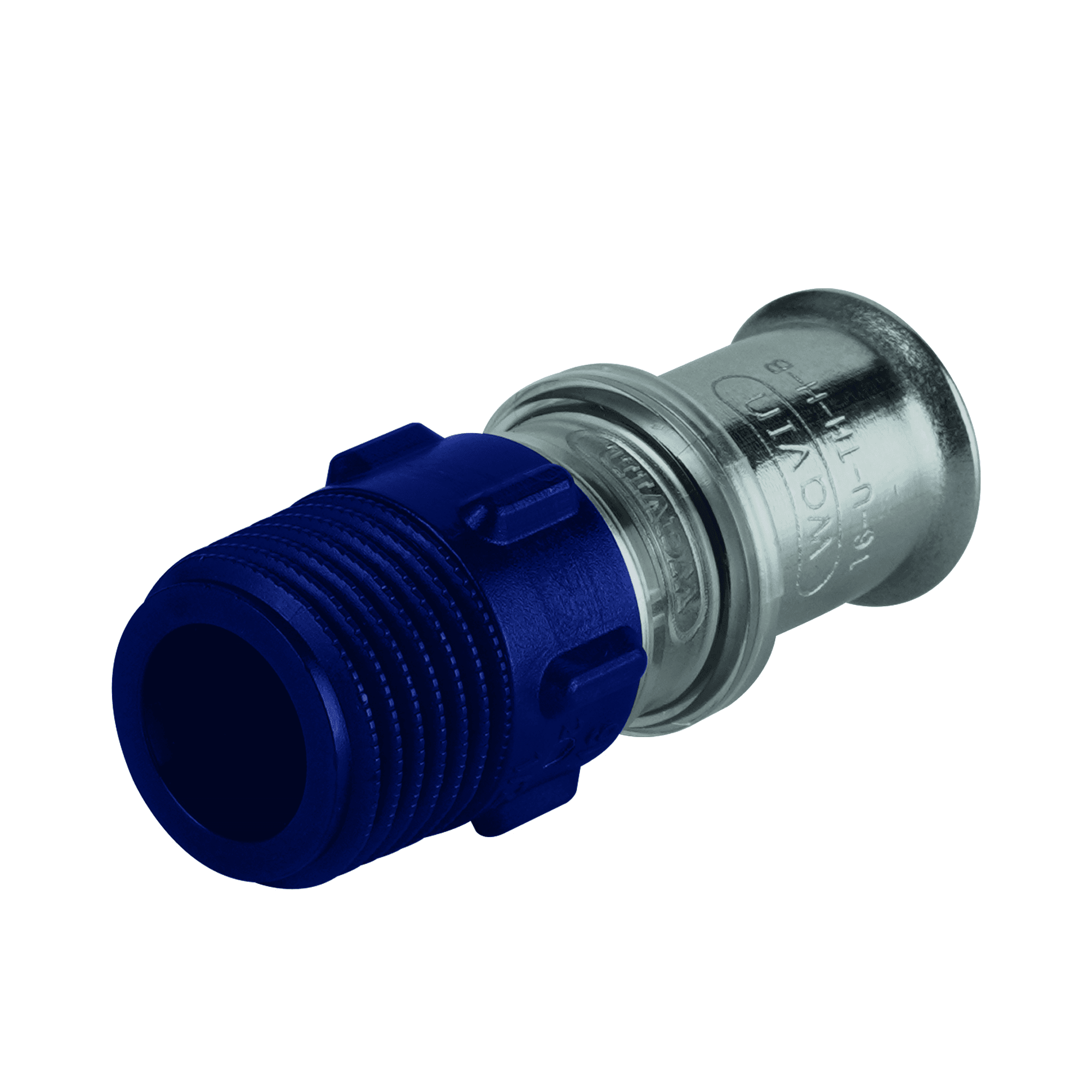

Adaptor Threaded Male

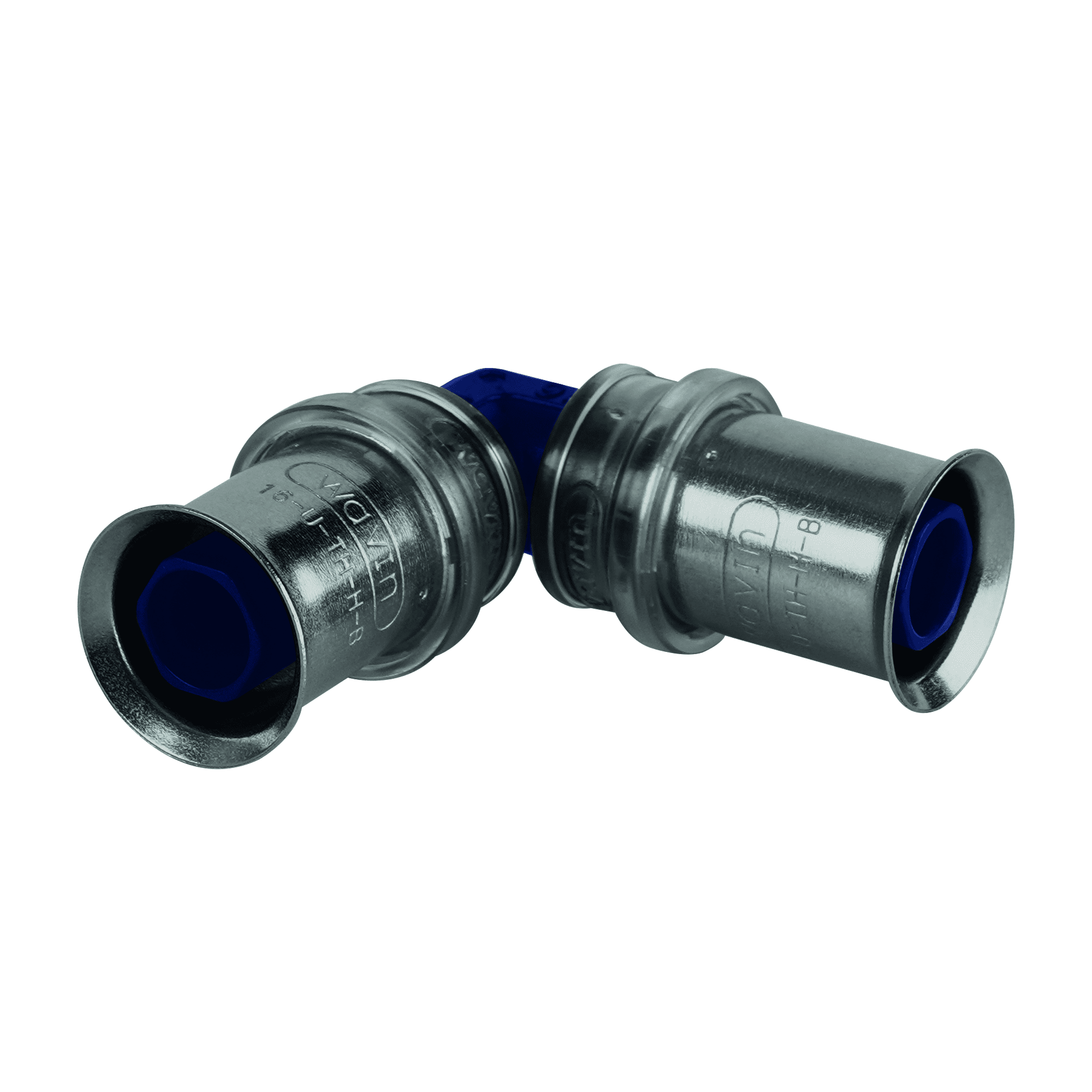

Elbow 90°
Elbow Base
